HYDRAULICS

Laurel Rubber & Gasket provides a comprehensive selection of hydraulic hoses, fittings, and custom assemblies tailored to meet diverse industrial requirements. Our hydraulic hoses are designed for high-pressure applications, ensuring durability and reliability under demanding conditions. We offer a variety of fittings to ensure secure connections and optimal performance across multiple systems. Additionally, our custom assembly services allow us to fabricate hose and fitting configurations to your specific specifications, ensuring that you receive a solution that fits your operational needs precisely. Whether for maintenance or new projects, our products are engineered to deliver exceptional performance in the most challenging environments.

HYDRAULIC HOSE

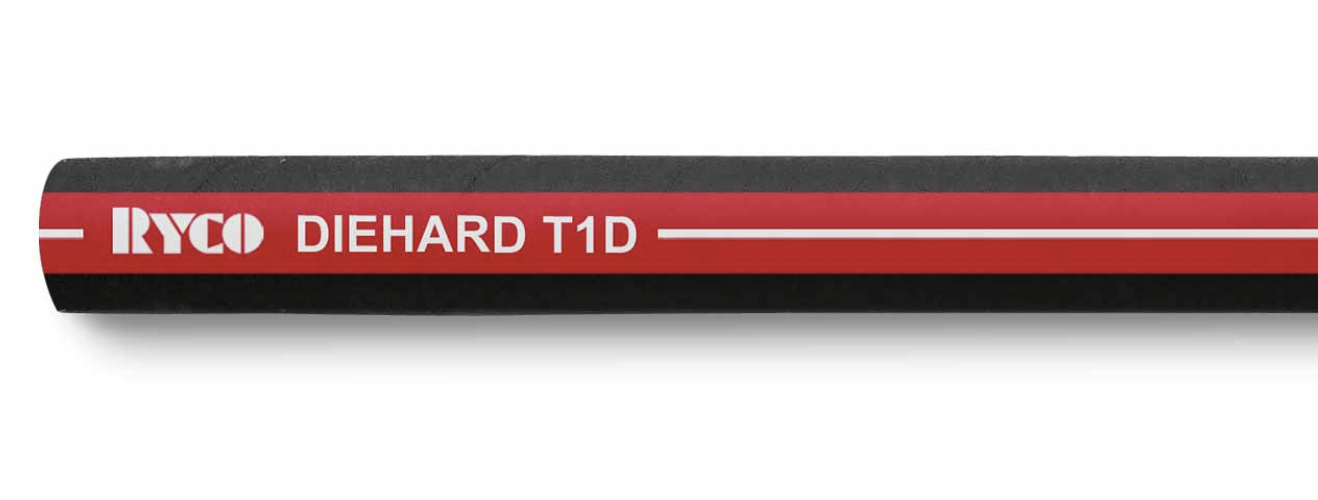

T1D 1-Wire Braid Hose

RECOMMENDED FOR: High pressure hydraulic oil lines in applications where the outside cover of the hose is subjected to abrasion that may cause premature failure of standard hoses.

FEATURES: The very high abrasion resistant properties of the cover, combined with the high working pressures and excellent impulse life, when tested to EN 853 Type 1SN/SAE 100R1AT test conditions, result in increased service life and minimize equipment downtime.

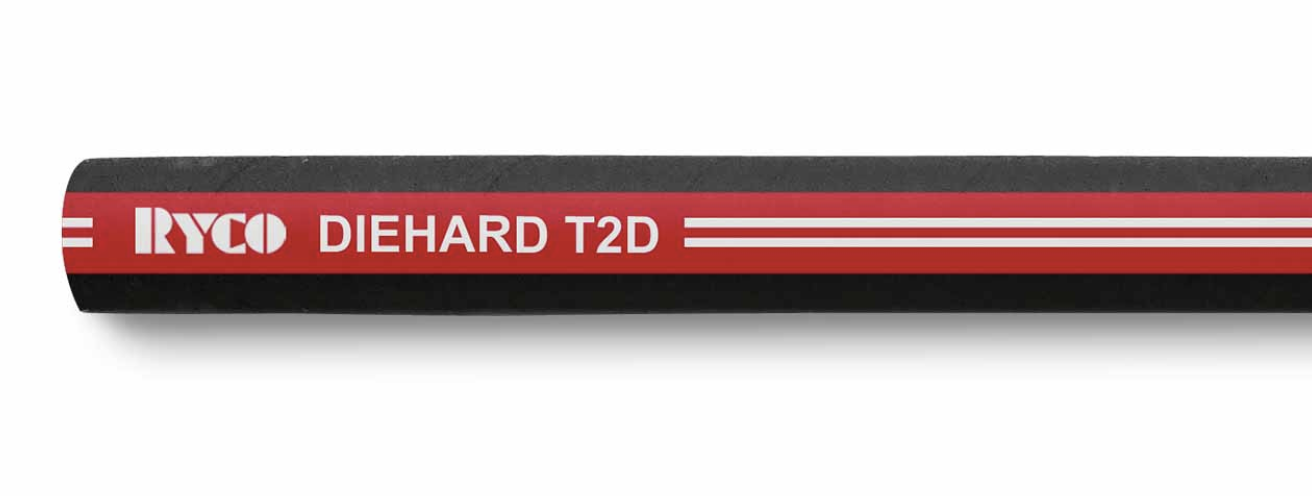

T2D 2-Wire Braided Hose

Recommended for: High pressure hydraulic oil lines in applications where the outside cover of the hose is subjected to abrasion that may cause premature failure of standard hoses.

Features: The very high abrasion resistant properties of the cover, combined with the high working pressures and excellent impulse life when tested to EN 853 Type 2SN/SAE 100R2AT test conditions result in, increased service life and minimize equipment downtime.

H5000D Isobaric Hose

Recommended for: Very high pressure hydraulic oil lines. Constant pressure (Isobaric) 350 bar / 5100 psi in all sizes. Small bend radius is an advantage in installations.

Features: Tested to 1 million impulse cycles at up to 1/2 SAE 100R13 Minimum Bend Radius. Constant pressure 350 bar / 5100 psi in all sizes for easy system design and hose selection. Small bend radius is an advantage in installations.

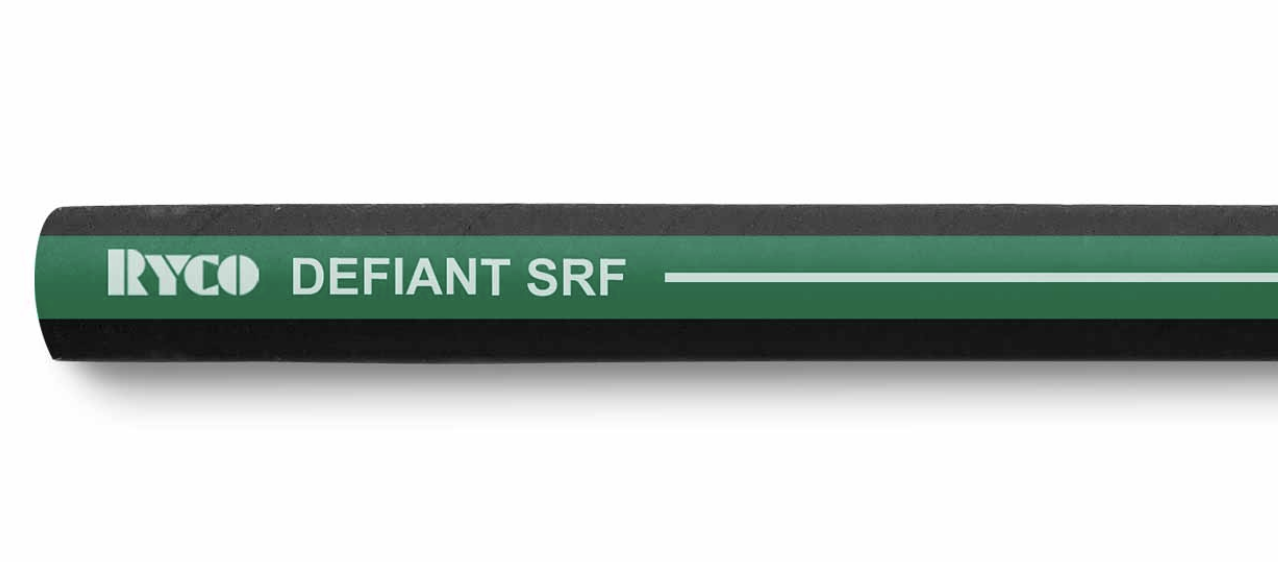

SRF Return Suction Hose

Recommended for: Petroleum and water base hydraulic fluids in suction lines or in low pressure return lines. Small bend radius is an advantage in installations where space is minimal. (Tighter Bend Radius than SAE 100R4)

Performance: Meets or Exceeds the Performance Requirements of: AS 3791 100R4, SAE 100R4.

H4000D Isobaric Spiral Hose

Recommended for: High pressure hydraulic oil lines. Constant pressure (Isobaric) 280 bar / 4100 psi in all sizes. Small bend radius is an advantage in installations.

Features: Tested to 1 million impulse cycles at up to 1/2 SAE 100R12 Minimum Bend Radius. Constant pressure 280 bar / 4100 psi in all sizes for easy system design and hose selection. Small bend radius is an advantage in installations.

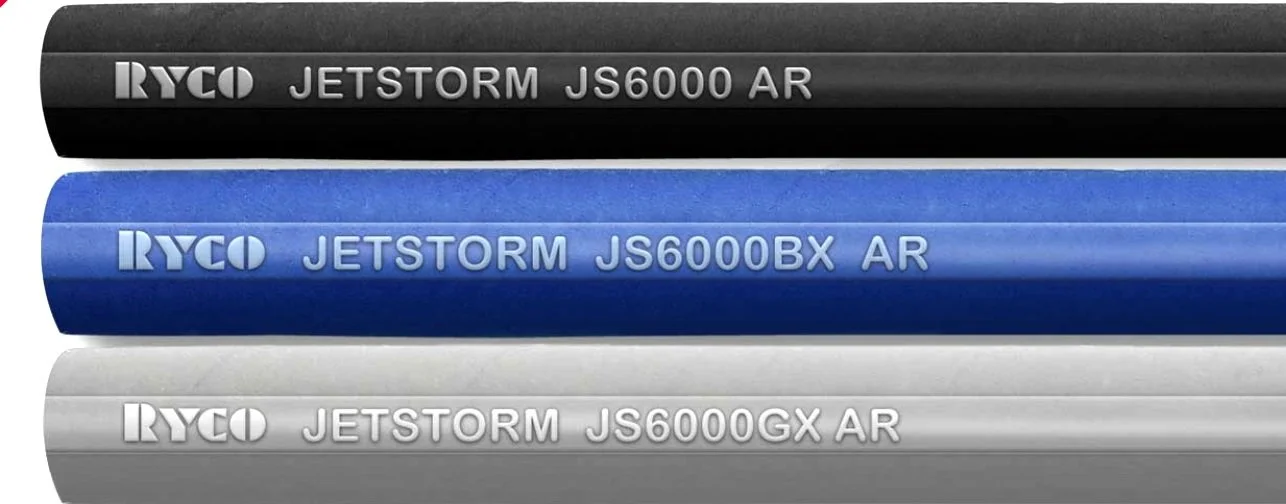

JETSTORM Pressure Washer Hose Blue

RECOMMENDED FOR: Hot Water Pressure Washer Machines operating at high pressures. Blue color (JS6000BX) is highly abrasion resistant. Not recommended for Steam. Also available in non-marking, abrasion resistant black and non-marking, animal fat resistant grey.

HYDRAULIC FITTINGS

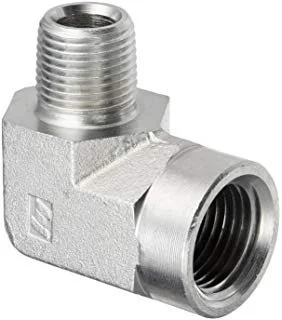

NPT Fittings

American National Standard Pipe Thread standards, often called national pipe thread standards for short, are US national technical standards for screw threads used on threaded pipes and pipe fittings. They include both tapered and straight thread series for various purposes including rigidity, pressure-tight sealing, or both.

O-Ring Boss

SAE O-ring boss fittings use straight thread and an O-ring (of either Buna N or Viton material, depending on the type of hydraulic fluid) to create a seal between the male and female fitting. Compression of the male fitting O-ring into the female chamfer cone seat creates a strong leak proof connection. SAE ORB adapter fittings are an excellent choice for medium and high pressure applications.

JIC Fittings

JIC fittings, defined by the SAE J514 and MIL-F-18866 standards, are a type of flare fitting machined with a 37-degree flare seating surface. JIC (Joint Industry Council) fittings are widely used in fuel delivery and fluid power applications, especially where high pressure (up to 10,000 psi) is involved.

Flange Fittings

SAE Flanges is a range of high pressure hydraulic flange which is made in accordance to SAE J518 standards. The acronym SAE stands for Society of Automotive Engineers. These flanges are used on oil hydraulic systems in many fields (shipbuilding, mobile hydraulic equipment, machine tools, earth moving machines, etc… ) and where there is passage of oil under pressure.

O-Ring Face Seal

ORFS offers excellent leak protection. The male fitting has a straight thread and O-ring in the face. The female has a straight thread and a machined flat face. The seal takes places by compressing the O-ring onto the flat face of the female, similar to a split flange fitting. The threads hold the connection mechanically.

SAE Fittings

SAE is Society of Automotive engineers. These fittings are commonly used in refrigeration, automotive and low pressure applications.

SAE male has 45° flare which seals against 45° seat in female. Male can also seal against 45° flared tubing with nut and sleeve. 7/16 - 20, 1/2 - 20, 3/4 - 16 & 7/8 - 14 are the same thread form as JIC 37° flare. some fittings in these sizes have both JIC 37° & SAE 45° seats.

API Thread

American Petroleum Institute approved extended male thread.

DKS Metric Fittings

DKS is DICHT KEGEL SCHWER - Metric Heavy Series 24° Cone.

DKL Metric

DKL is DICHT KEGEL LEICHT – Metric Light Series 24° Cone.

JIS Fittings

The Japanese Industrial Standard fitting 30° is similar to the SAE 37° flare connection. However, the flare angle and dimensions are different. The threads are similar to BSPP.
